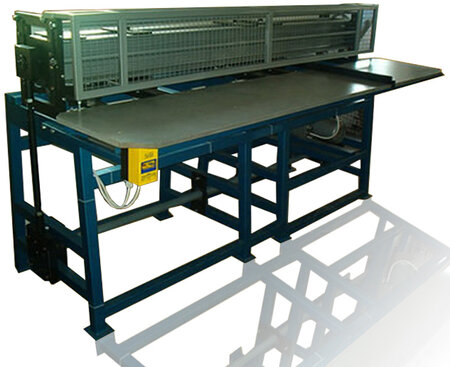

Machine for Cardboard Slotting and Cutting

Technical Characteristics

                       LxBxH (mm)    2.500x850x1.250

                          Voltage (V)    380

                   Frequency (Hz)     50

                        Power (KW)     0,75

                 Capacity (m/min)    up to 550

           Working width (mm)    2.200

Machine for cardboard slotting and cutting, and also machine for cardboard scoring and cutting, are basic machines for production of transport (American) boxes, especially big-dimension boxes.

Slotting, i.e cutting of cardboard is performed by passing the cutters through the cardboard plates, put in the machine by operator.
Machine works in cycles, and can be performed by continual operation or with cycle stoppage. All slots from one side of the cardboard plate are cut in single step, and at the same time “flap” is also cut.
Cutters are made of high-quality heat treated quick-cutting steel.
This machine is produced in various working widths, in dependence of customer requests: 2.000mm, 2.200mm, 2.400mm, 2.600mm.
