Technical Characteristics

                       LxBxH (mm)    3.300x1.370x1.100

                          Voltage (V)    380

                   Frequency (Hz)     50

                        Power (KW)     0,75

                 Capacity (pcs/h)     up to 1.800

           Working width (mm)    1.200

Width of printing rolls (mm)    1.000

    Max.printing length (mm)    900

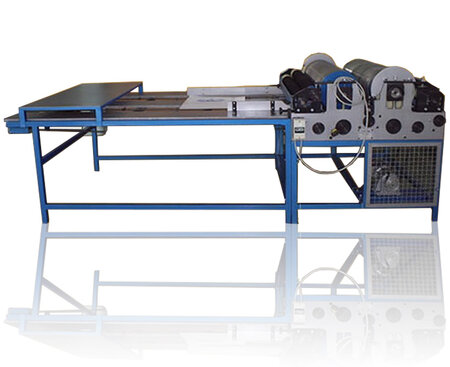

Two-color flexo printing machine is used for printing natron sacks, chromo cardboard, multilayer glued paper and multilayer glued paper assembled boxes.

Putting in printing machine is manual, during printer working cycle. Printing is performed with water-based paints.It is possible to print in more colors, but it is necessary to change the paint in containers and clichés, and pass printing material batch through the printer again. Also, it is possible to print infinite print on panels-width 1.200mm and arbitrary length. On other system of rolls, there are mechanisms for axial and transversal print adjustment, i.e second print in relation to the first.
Besides standard machines(technical characteristics given), we can also offer machines with bigger dimensions.
This machine has Certificate, corresponding technical documentation, 12-months warranty, repair service and spare parts are provided.


I - Two-Color Printing Machine
