Technical Characteristics

                       LxBxH (mm)    2.750x1.370x1.100

                          Voltage (V)    380

                   Frequency (Hz)     50

                        Power (KW)     0,55

                Capacity (pcs/h)     up to 1.800

           Working width (mm)    1.200

Width of printing rolls (mm)    1.000

    Max.printing length (mm)    900

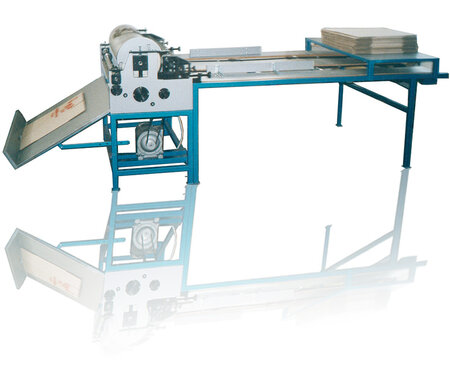

Flexo printing machine is used for printing natron sacks, chromo cardboard, multilayer glued paper and multilayer glued-paper assembled boxes. Putting in printer is manual, during printer working cycle. Printing is performed with water-based paint. It is possible to print in more colors, but it is necessary to change the paint in container and the cliché, and pass the printing material batch through printer again. This procedure is repeated as many times as the colors need to be printed.

Also, it is possible to print infinite print on panels – width 1.200mm and arbitrary length.
Besides standard machines, we can offer machines of bigger dimensions and higher operation possibilities. This machine has Certificate and corresponding technical documentation, 12-months warranty, repair service and spare parts are provided.
It is possible to operate with constant capacity (rpm), about 1.800 panels/h, or with frequency regulator.
